SchematicStudio
Web based electrical CAD software
0 followers
Web based electrical CAD software
0 followers

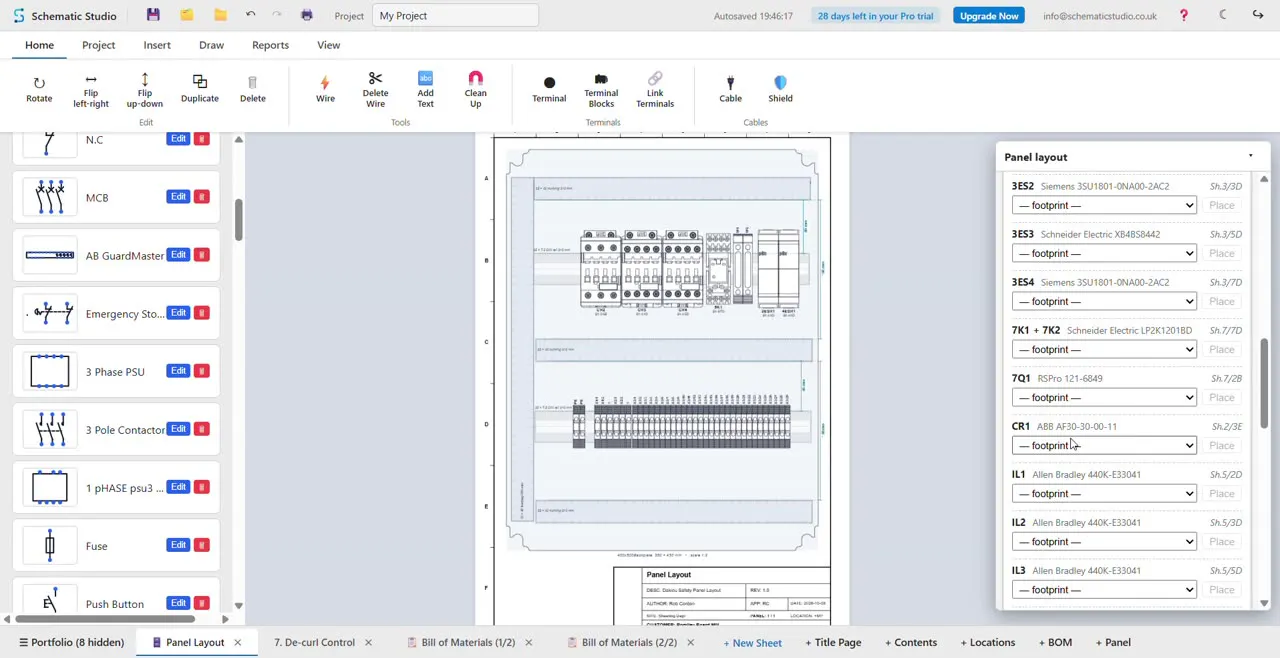

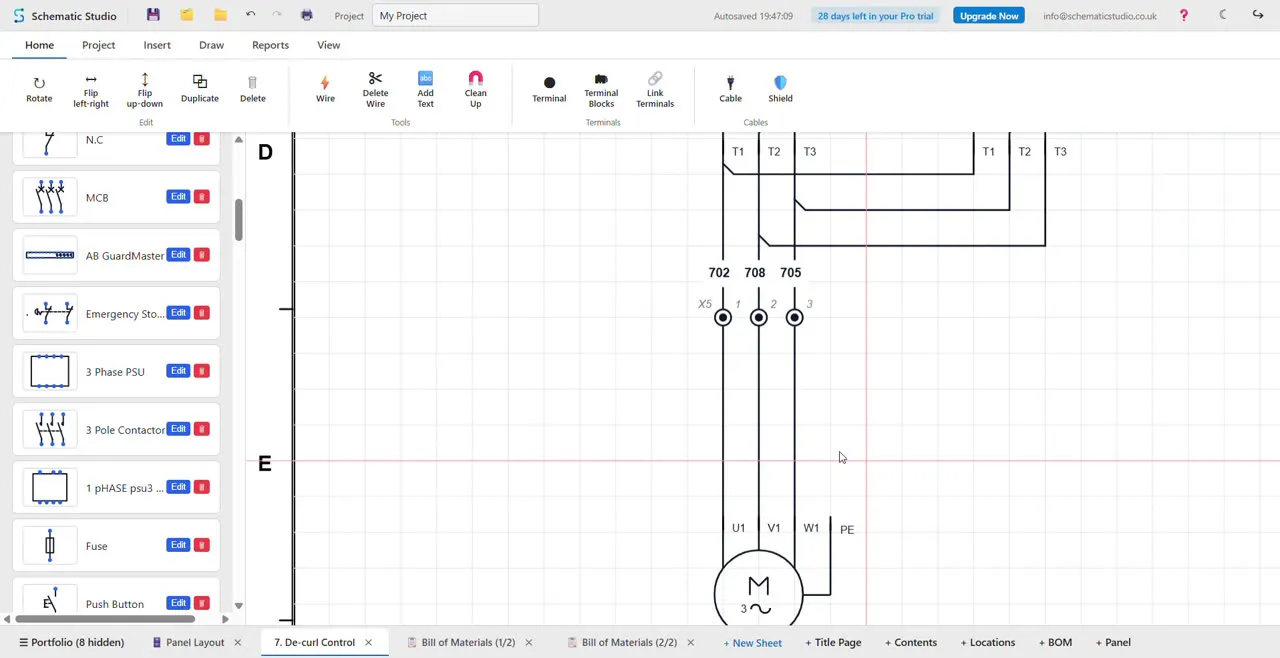

Electrical CAD and drawing software in your browser. Draw schematics and wiring diagrams, manage cables and terminals, lay out the control panel, export a live BOM. Free to start.
I built this to provide an affordable solution for designing and building industrial electrical panels. The solution is provided with a basic library of over 70 symbols, the function of creating and exporting your own libraries and a host of other functions to aid and organise the final build.
