VanHackaton Project: PDF Filler and Mockup Events/Jobs Dashboard

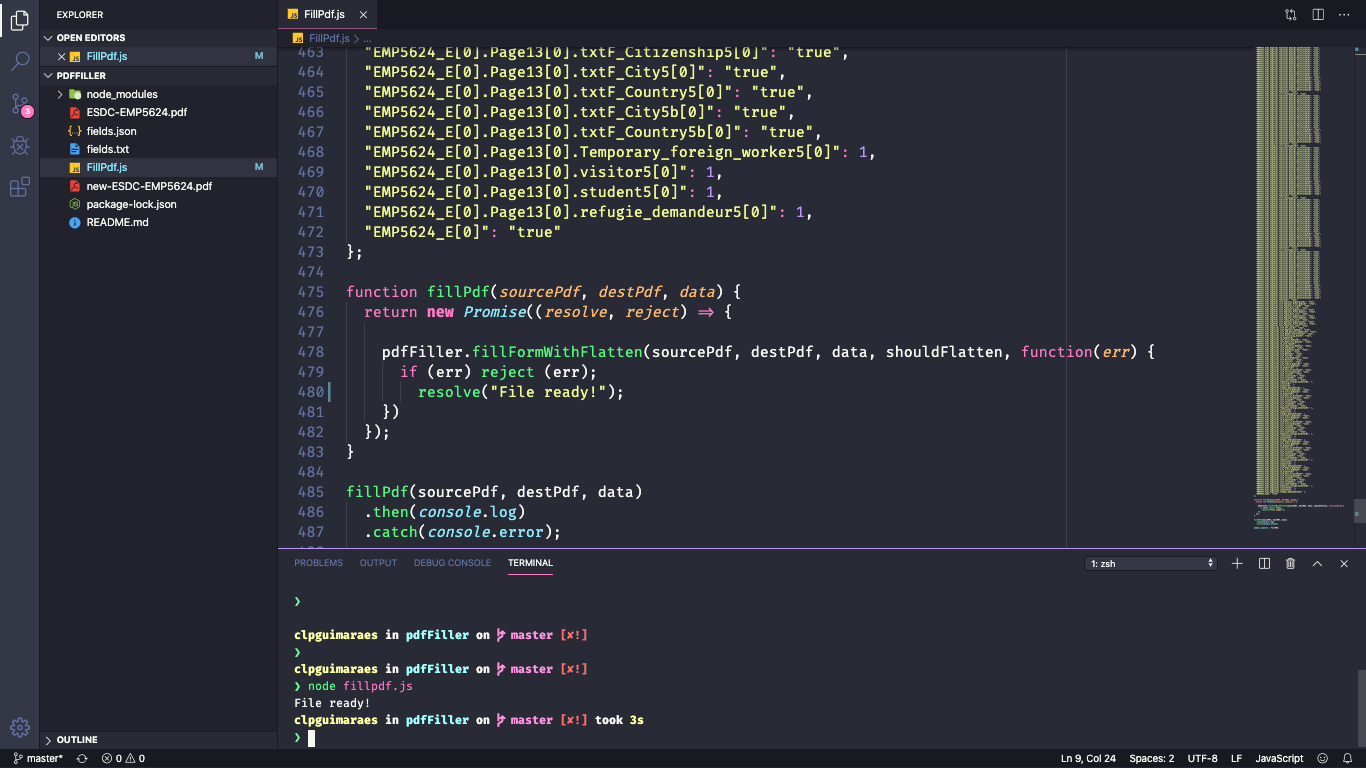

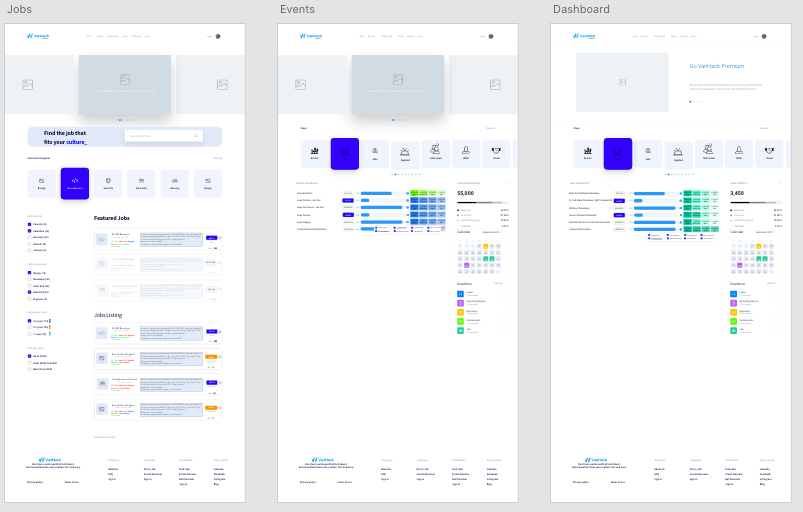

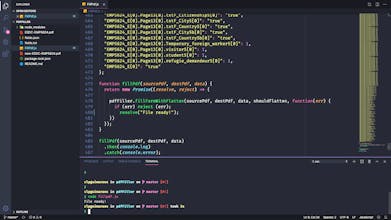

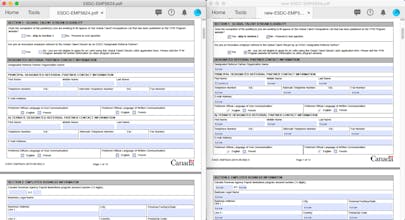

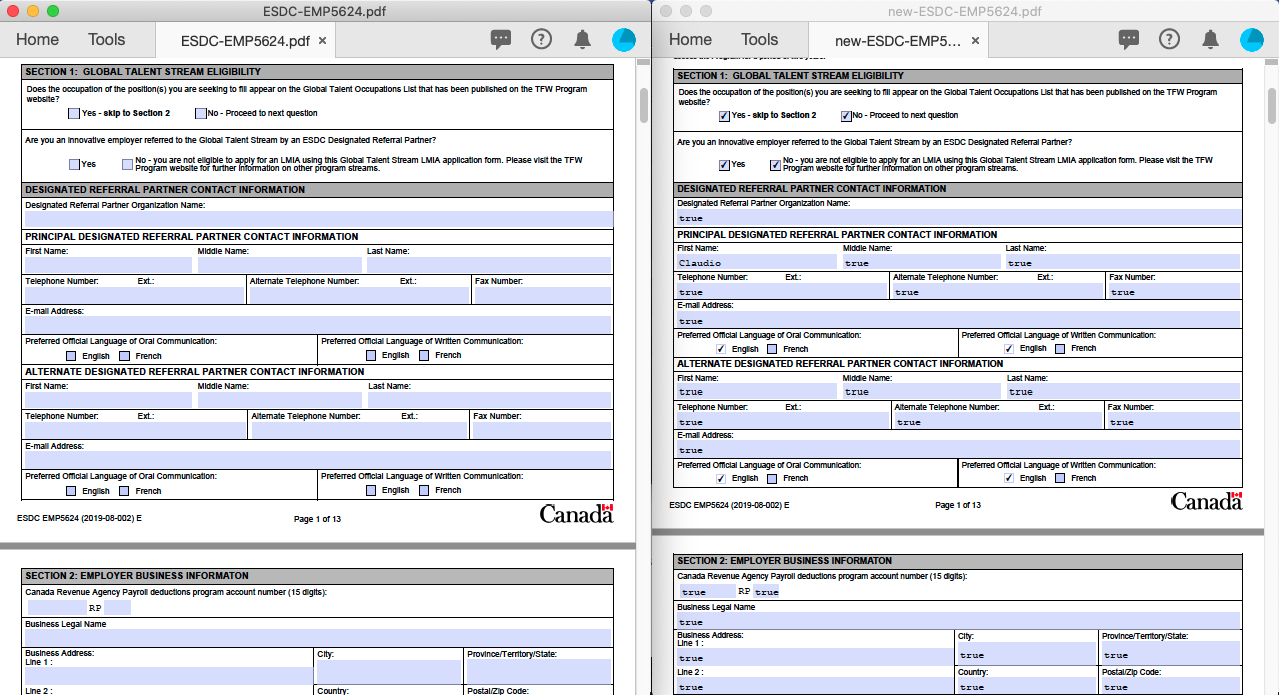

Developed the following projects: - PDF Filler - Review of Event Calendar, Job List and Dashboard pages to keep track of event and vacancy applications. PDF Filler PDF filler was developed in javascritpt / Node using the PDF Filler and Pdftk libraries. This way, just install the libraries below: npm install node-pdftk npm install pdffiller --save More information about libraries can be found at the links below: https://github.com/pdffillerjs/p... https://github.com/jjwilly16/nod... The program is simple, more functional. There is a need to unlock the original form ESDC-EMP5624.PDF and copy it to the application root directory. To simulate the base load, I created the variables corresponding to the form fields in the body of the program. When there is a need for database integration, simply read the database on the identified variables. The program reads the original form and saves in the application root directory a new unprotected form called new-ESDC-EMP5624.pdf. If you need to lock the newly generated form, just change the shouldFlatten variable to true. To run the program just run: node fillpdf.js See the project PDF Filler at https://github.com/clpguimaraes/... Event Calendar & Job Listing Graphical Interface and Dashboard Creation For the development of the graphical interface was used Adobe XD and can be accessed through the Link: https://xd.adobe.com/view/5b6e0e... There were no substantial changes to the header and footer, only adaptation to the Dashboard. In the header was inserted a slider to publicize services or events. The main objective of the proposal is to reduce the need to open new windows and instant visual identification through icons and colors to enable more intuitive, fluid and fast navigation. In the vacancies page, the colors were prioritized for instant identification of the necessary requirements of each vacancy and if the candidate has the same requirements, besides the years of experience. All job information is available without opening new windows. There are filters that allow you to reduce the scope through the following filters: job type, position, position, city, length of experience and salary. In the event page, a color palette was also used to make the information easier to visualize, as well as to create a list that identifies each step and its status through colors and a small check list. A calendar has also been created that signals event deadlines. There is a filter system that makes it easy to view the list of events by choosing steps and activities. A table for the dissemination of event statistics was also created. On the Dashboard page, a highlight area has been created in the Vanhack Premium disclosure header, with the option to enter four rotating information. I opted to standardize the navigation system, colors, and event-like layout to ease the learning curve.
