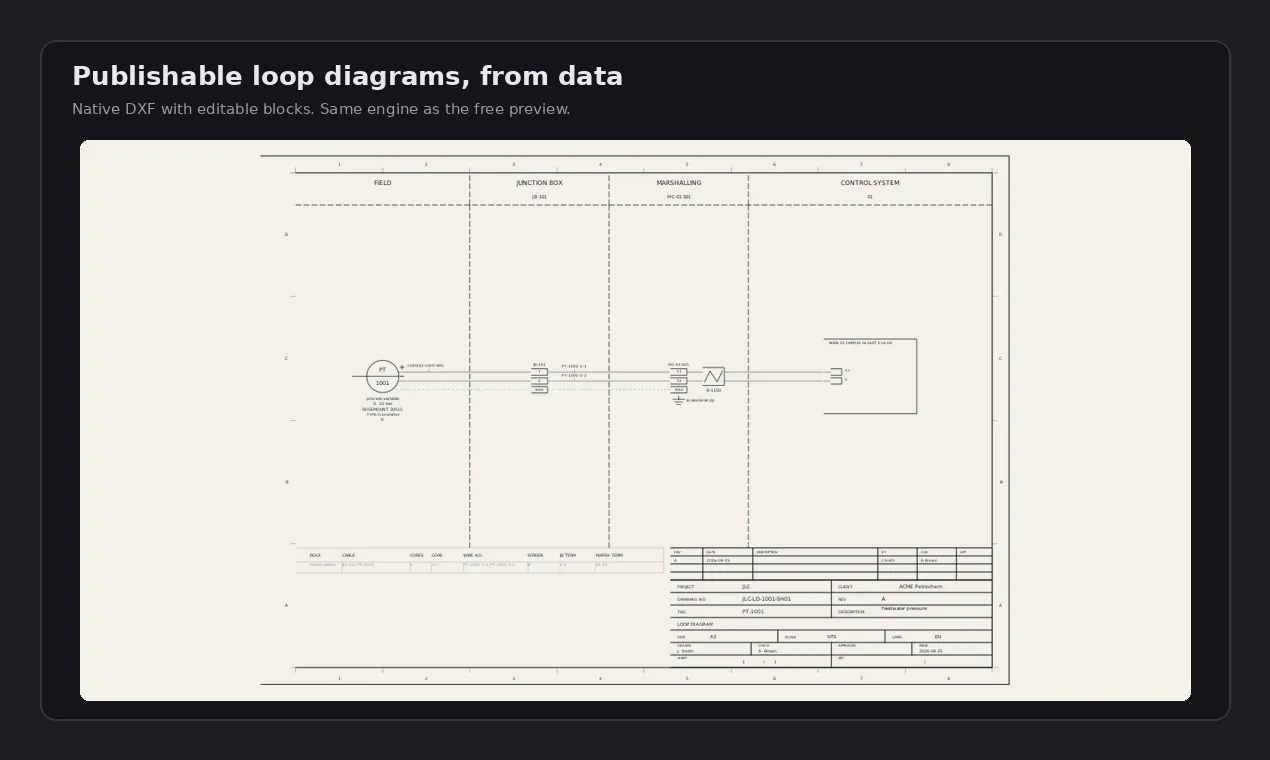

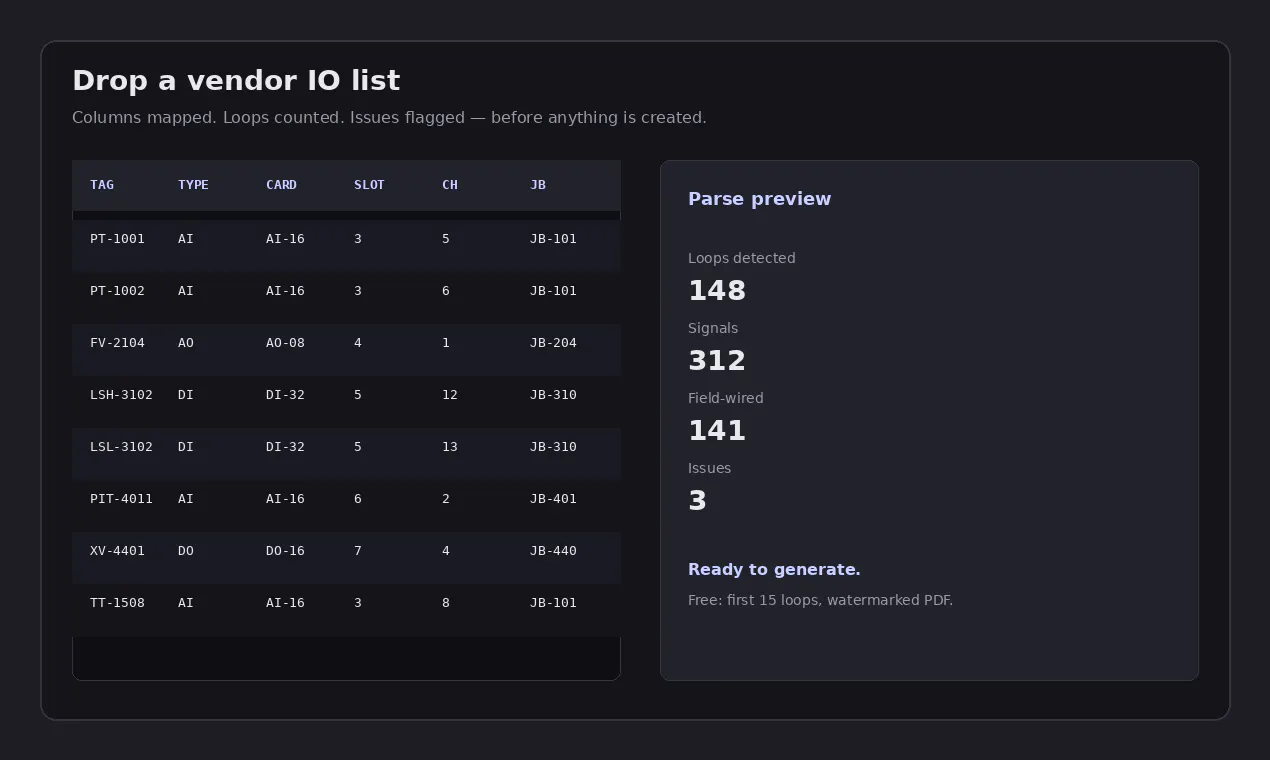

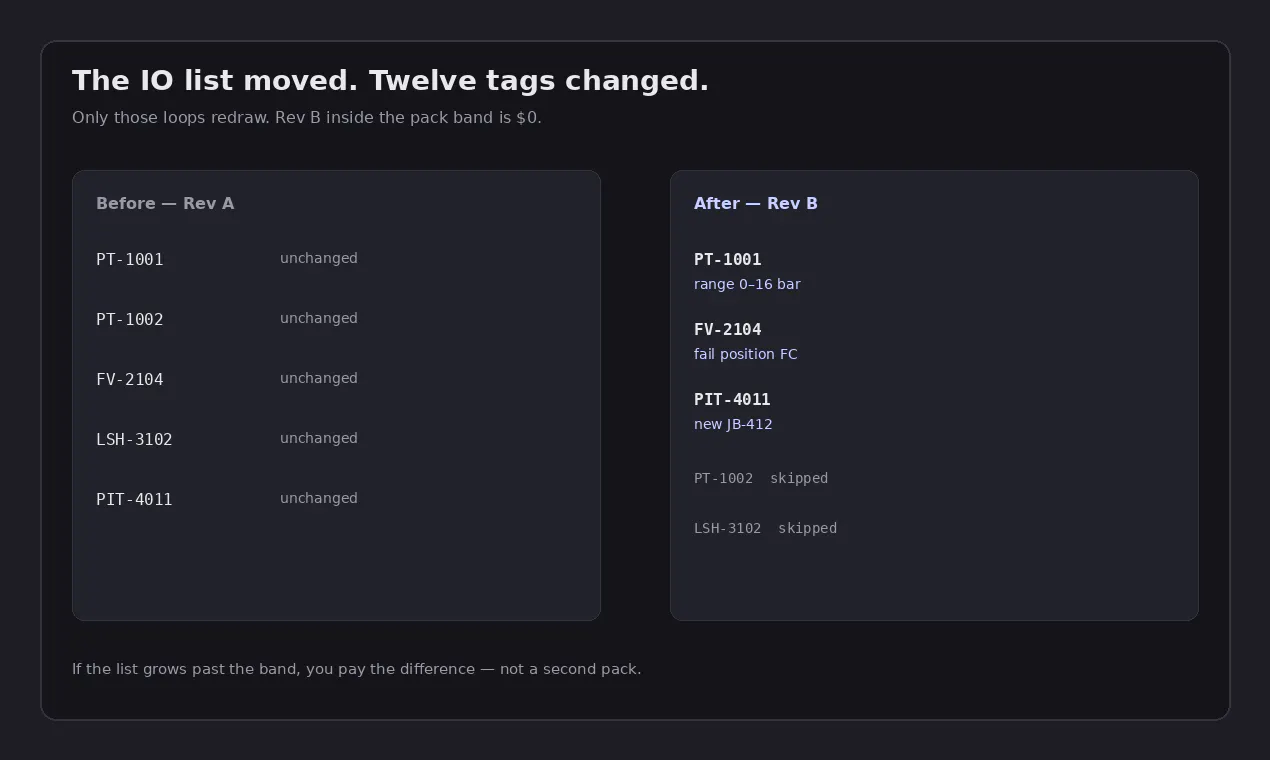

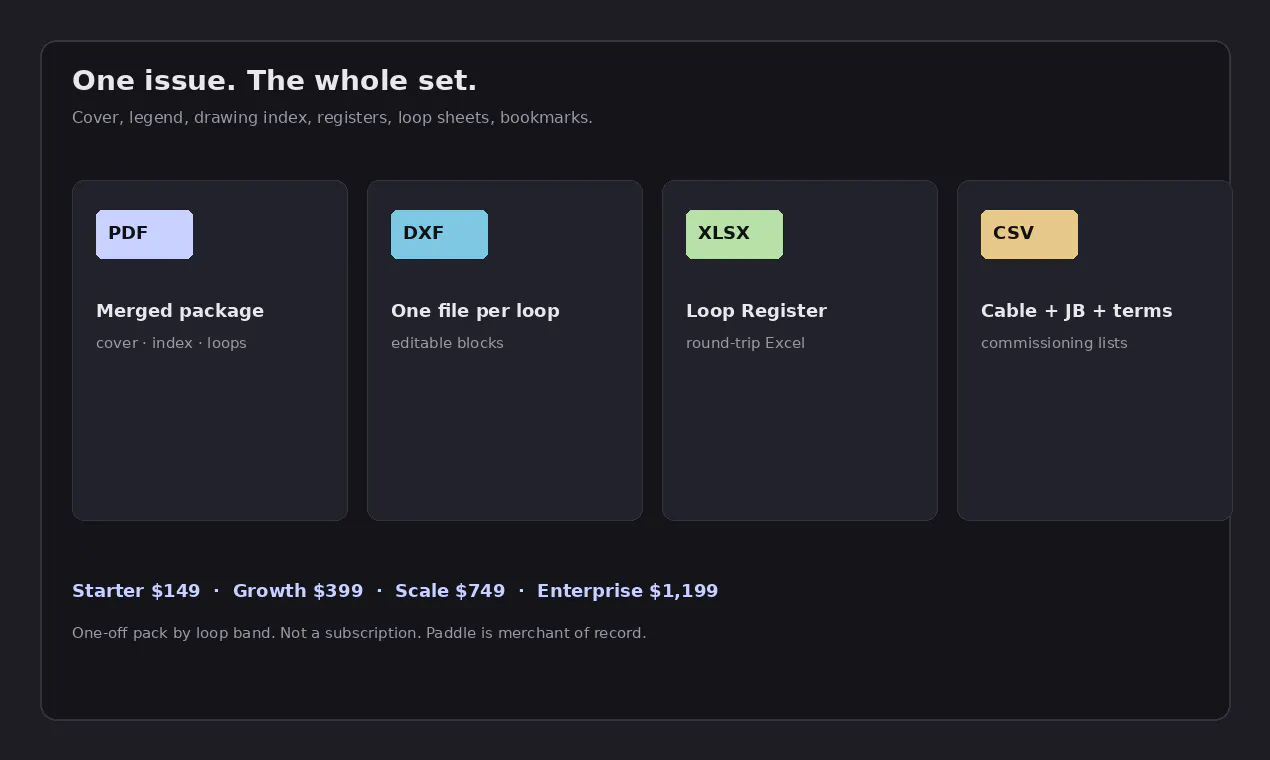

I'm Saad, I built SchematicForge. I spent years watching I&C teams redraw 150 loop sheets every time the vendor IO list moved. AutoCAD Electrical and EPLAN are the right tools for panels. They are the wrong tools for "the DCS export changed 12 tags." SchematicForge takes the spreadsheet you already have, maps columns, and issues: - loop diagrams (PDF + native DXF with editable blocks) - cable schedule, JB schedule, termination lists - a round-trip Loop Register (edit in Excel, re-import, only changed loops redraw) Same input, same files. No AI in the drawing path. We don't train on your projects. Free tier: drop an XLSX on the homepage with no account, then the first 15 field-wired loops as a watermarked PDF. A pack is a one-off by loop band (Starter $149 / Growth $399 / Scale $749 / Enterprise $1,199) — not a subscription. Regenerating Rev B/C inside that band is $0. Happy to take questions. If you have a messy vendor IO list, throw it at schematicforge.com and tell me what the parser missed.

SchematicForge

Stop redrawing I&C schematics when the spreadsheet changes

Stop redrawing I&C schematics when the spreadsheet changes
