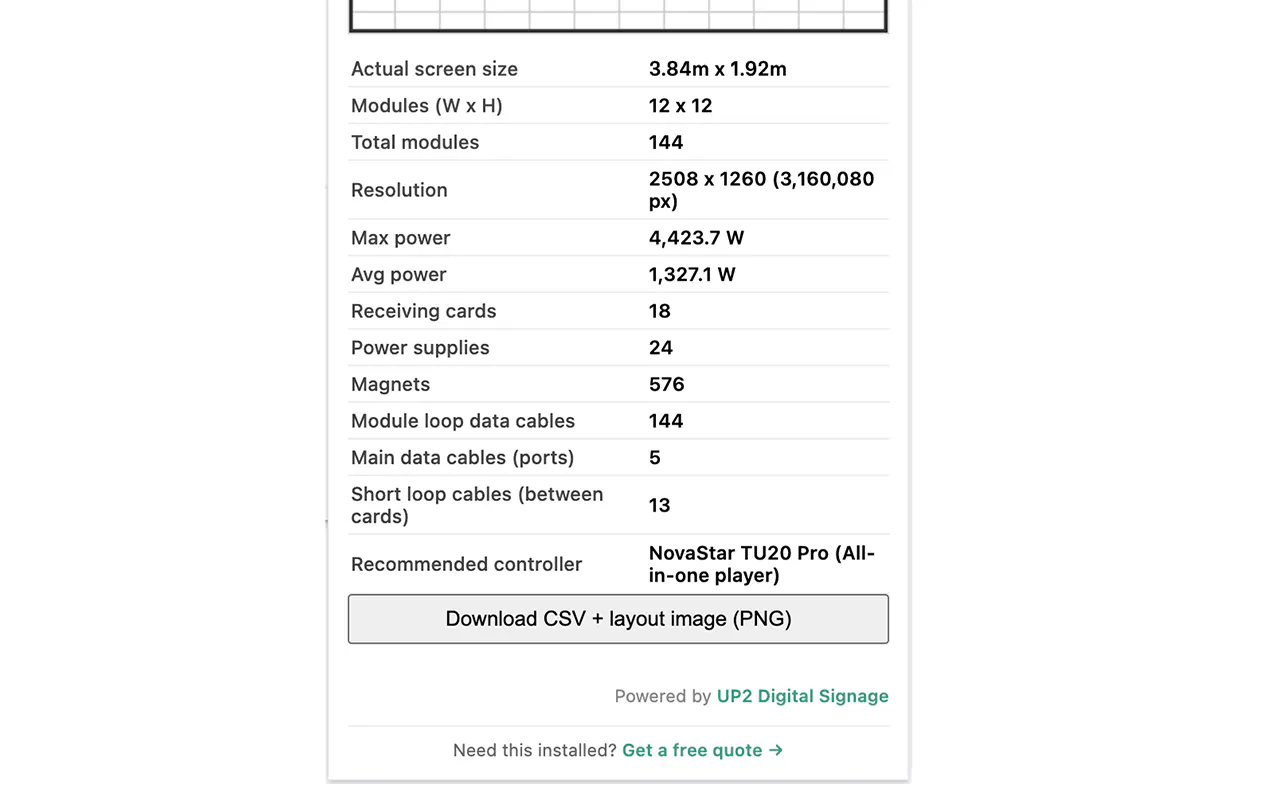

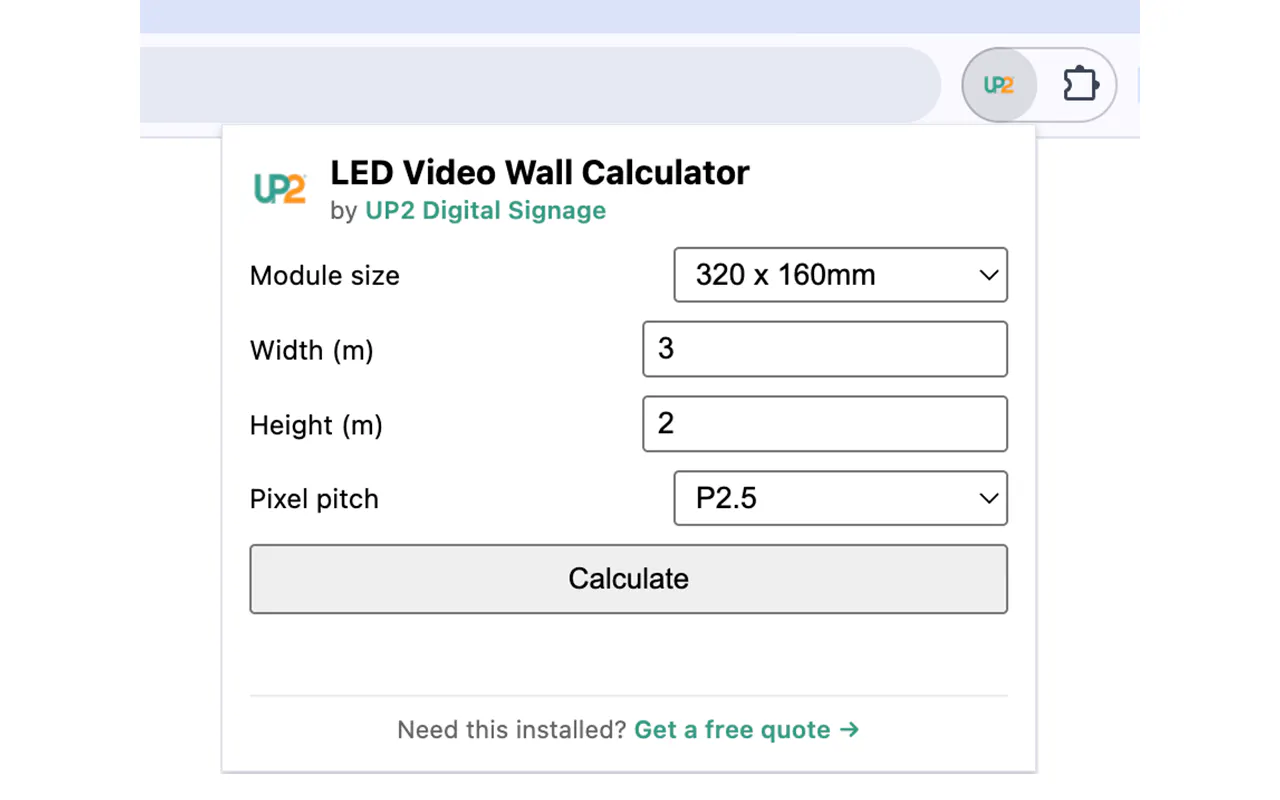

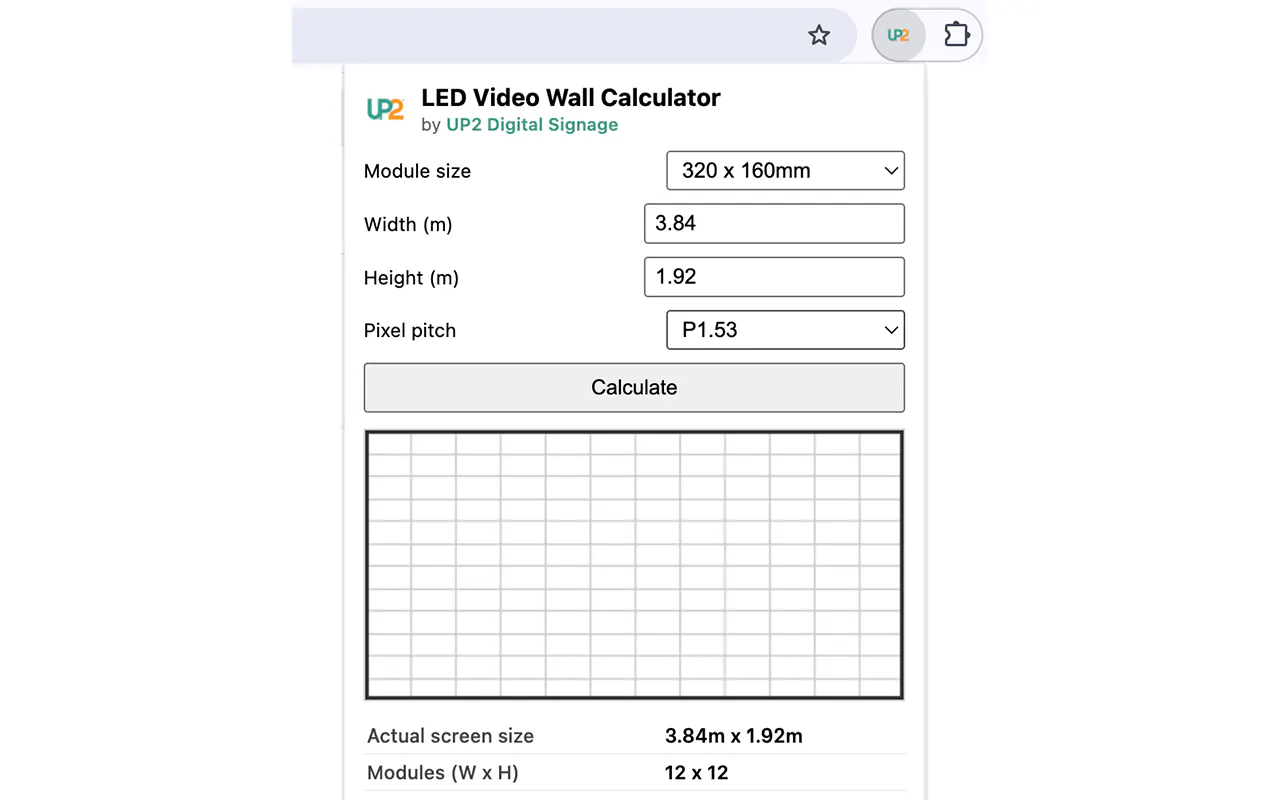

Calculate LED video wall size, resolution, power, cabling & best controller from your screen size. By UP2 Digital Signage. Planning an LED video wall? This free calculator turns two numbers — your screen size and pixel pitch — into a complete, accurate hardware spec sheet in seconds. For AV integrators: skip the manual math. Get exact module counts, real resolution, max and average power draw, receiving card and power supply counts, magnet and data cable counts, and the best-fit NovaStar controller — calculated from real datasheet values, not rough estimates. Export a clean CSV spec sheet plus a true-to-scale PNG layout drawing to drop straight into your quotes, tenders, or installation documents. For end users and decision-makers: know exactly what you're committing to before you sign off. See the real power draw your electrician needs to plan for, the actual resolution your content team needs to design for, and the hardware count that drives your budget — so there are no surprises between the quote and the install. Built by UP2 Digital Signage (Dubai) using our own product data for indoor fixed LED screens (320x160mm modules), with more module sizes and manufacturers on the way.

LED Video Wall Calculator

Calculate LED video wall size, resolution, best controller.

Calculate LED video wall size, resolution, best controller.
