AutoRedline
Mechanical drawing redlines and FAI preparation
2 followers
Mechanical drawing redlines and FAI preparation
2 followers
AutoRedline automates drawing work for design and quality teams. Generate strikeouts and additions from two mechanical drawing PDFs, or prepare FAI balloons and matching inspection Excel from one. Review and edit the results in your browser, then export. No native CAD files required. Inspect generated examples: https://autoredline.ai/demo/sample and https://autoredline.ai/fai (synthetic test revisions or drawings). Standards checking is planned, not available today.
Free Options
Launch tags:Design Tools
Launch Team
Render Sandboxes: a computer for every agentGive every agent its own machine. Starts in under a second
Promoted
We built AutoRedline to automatically generate engineering redlines from two drawing PDFs using AI, including changes to dimensions, tolerances, geometry, notes, BOMs, and balloon callouts.
Upload the original and revised PDFs, review and edit the marks in your browser, then export a redlined PDF for engineering review. No installation or native CAD files needed.

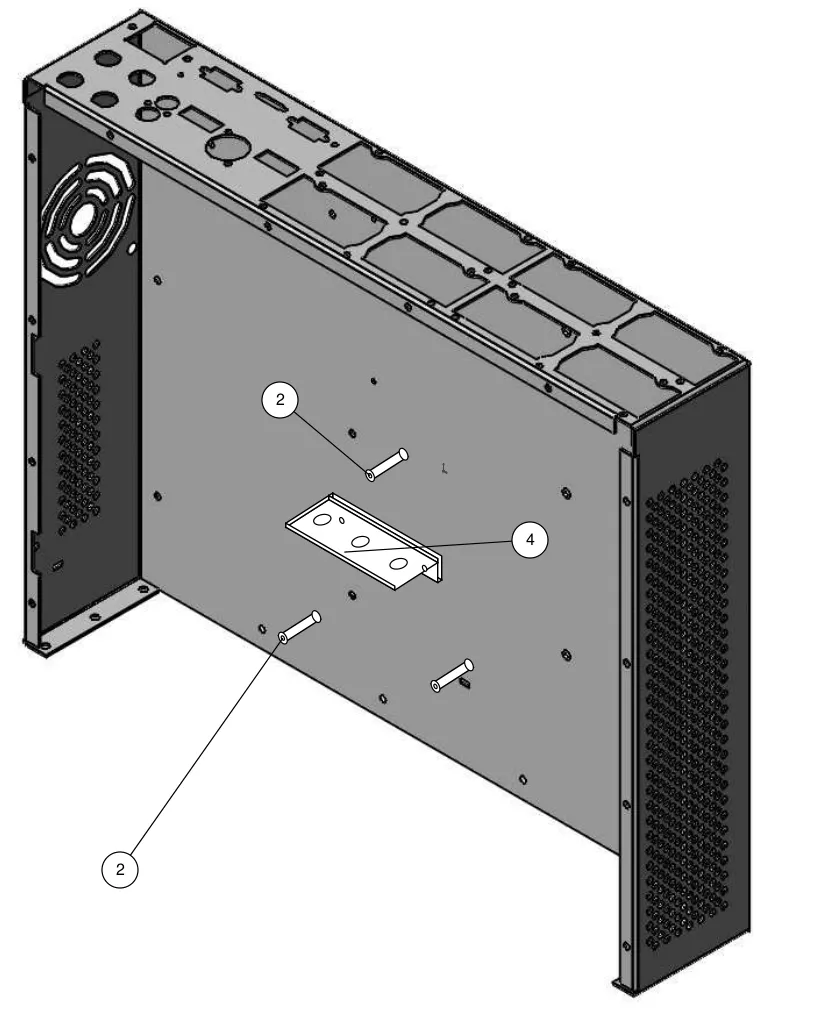

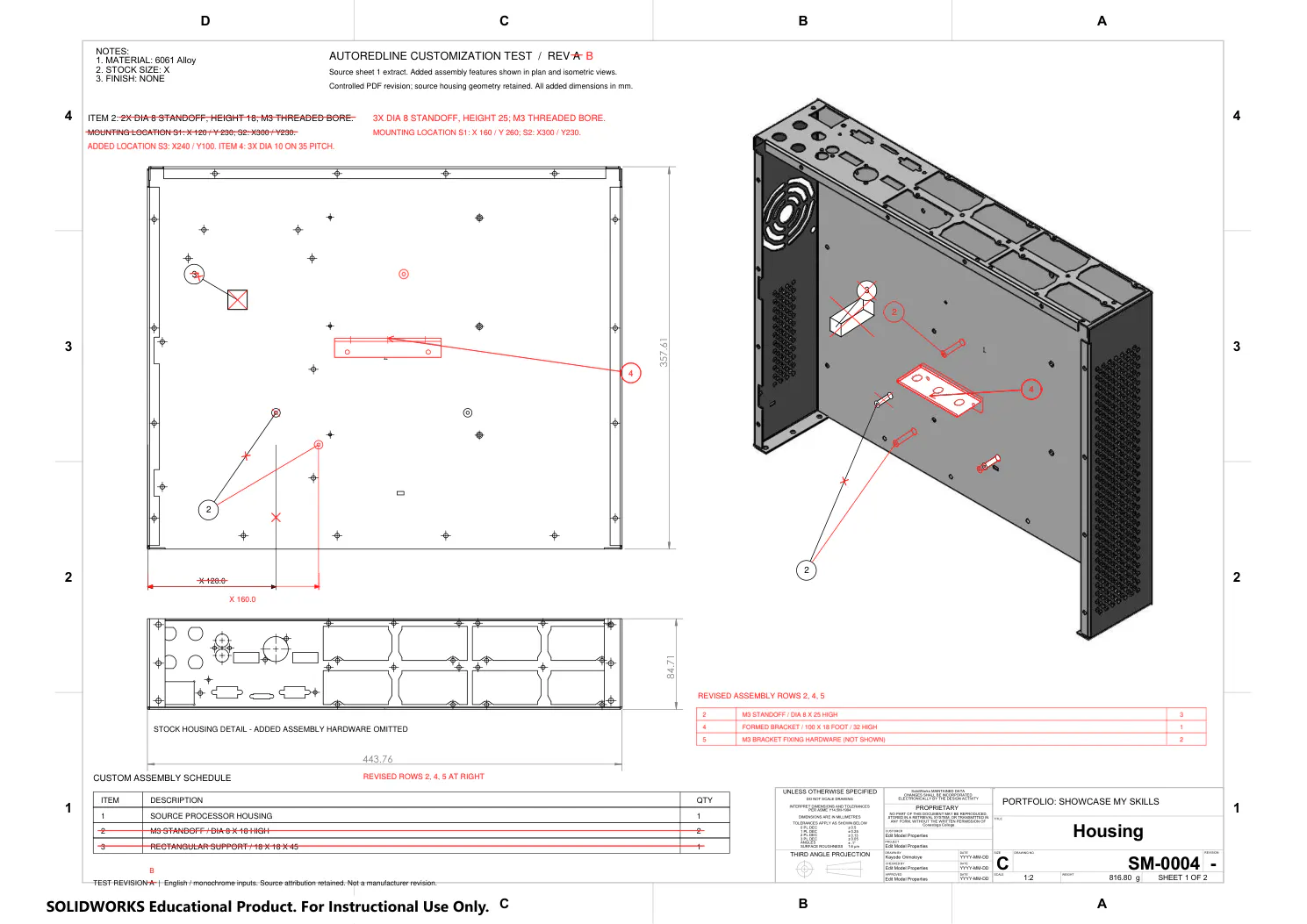

The gallery shows our housing example: original, revised, and actual generated redline. We created the example revisions.
It's live, with 600 free credits to try your own drawings: https://autoredline.ai/
We'd love to hear what you think and what's missing for it to fit your workflow.
